LED sheet light - LED Module Cut into the shape you need!

LED ALUMINUM PANEL

RX-BKT28-500235



  1. LED sheet light, flexible LED module
  2. One LED a group, Cut the shape you need
  3. Dimensions 500x235mm, 105LED
  4. LED spacing 33mm
  5. Patent No .: ZL201420249938.2
  6. lamps and lanterns, special-shaped lamps light source, advertising backlight source
  7. Input voltage DC12V (optional DC24V)
  8. LED chip luminous efficiency of 150Lm / W
  9. CE RoHS FCC





RX-BKT28T-500235



  1. LED sheet light, flexible LED module
  2. 160° TV Lens, Diffuse light.
  3. Dimensions 500x235mm, 105LED
  4. LED spacing 33mm
  5. Patent No .: ZL201420249938.2
  6. lamps and lanterns, special-shaped lamps light source, advertising backlight source
  7. Input voltage DC12V (optional DC24V)
  8. LED chip luminous efficiency of 108Lm / W
  9. CE RoHS FCC





RX-BKT28-500240

  1. LED sheet light, flexible LED module
  2. One LED a group, Cut the shape you need
  3. Dimensions 500x240mm, 300LED
  4. LED spacing 20mm
  5. Patent No .: ZL201420249938.2
  6. lamps and lanterns, special-shaped lamps light source, advertising backlight source
  7. Input voltage DC12V (optional DC24V)
  8. LED chip luminous efficiency of 108Lm / W
  9. CE RoHS FCC

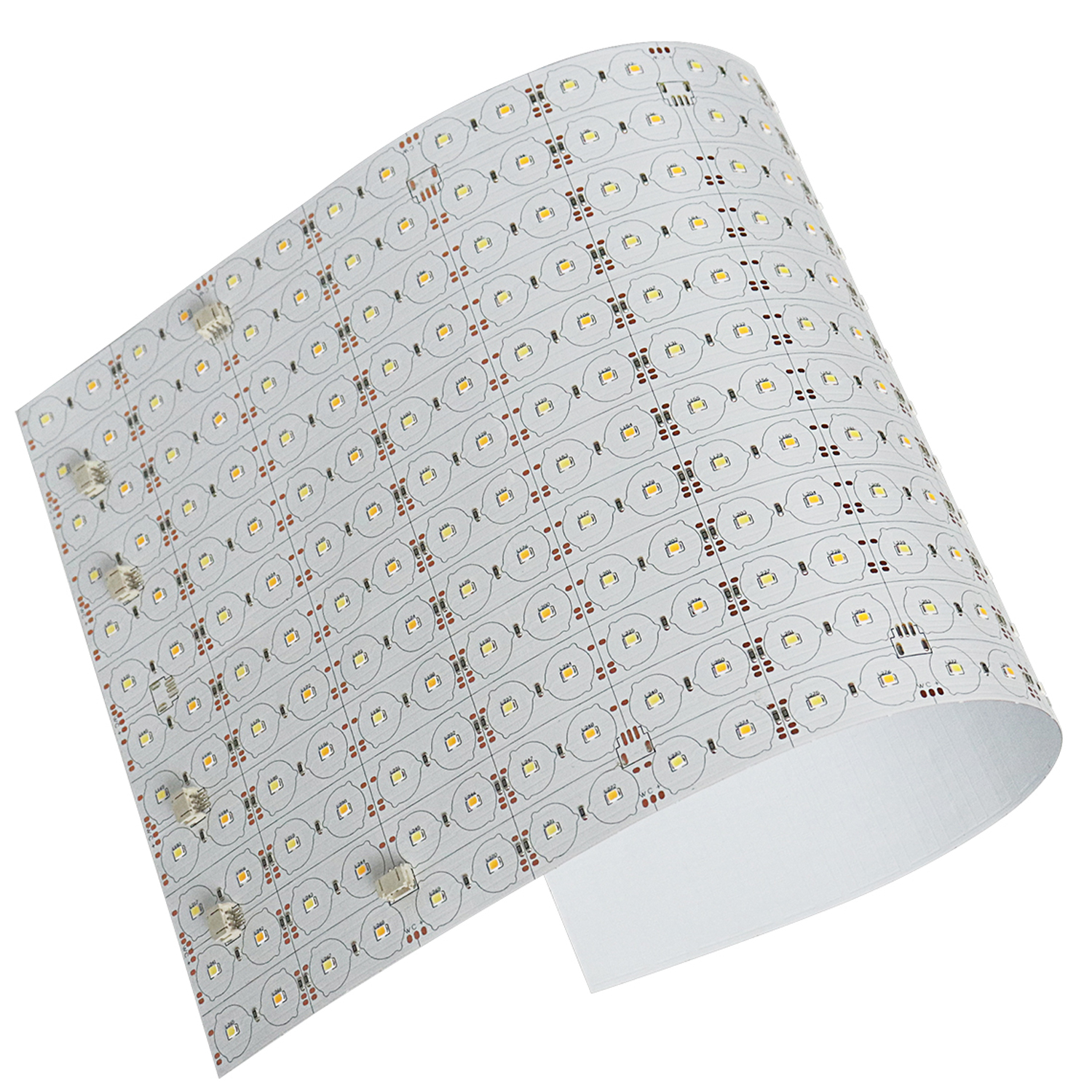

RX-BKT28-500240-CCT

  1. 4 LED cut, It can be cut into any shape!
  2. Two-channel common anode, CCT color temperature adjustable
  3. Slim light box LED sheet module, depth 40mm
  4. High efficiency 130Lm / W DC24V Input
  5. High CRI > 80
  6. Patent: ZL201420249938.2
  7. CV input DC24V, Easy to expand installation
  8. Warranty 3 years
  9. CE RoHS FCC PSE

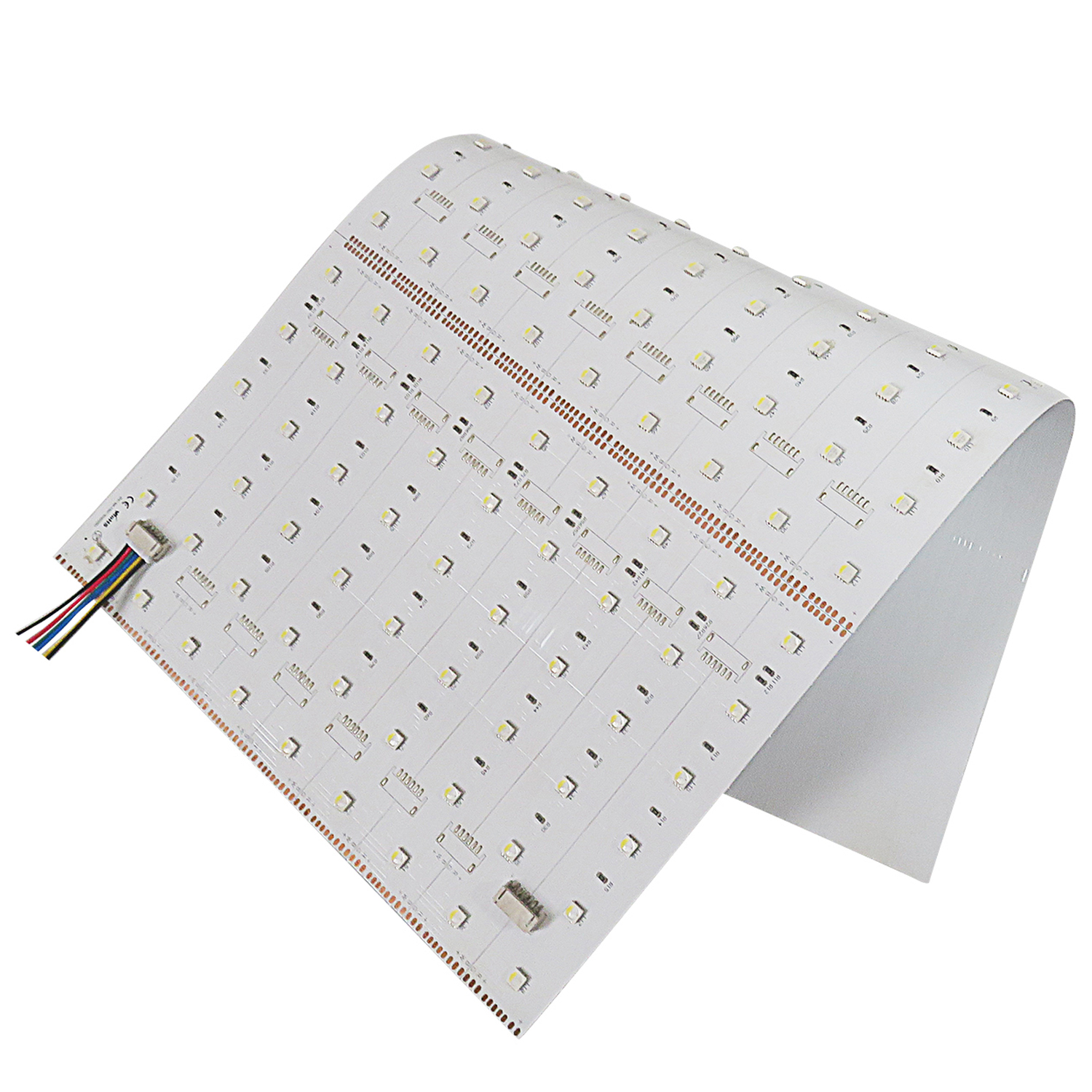

RX-BKT50-500250

  1. RGBW Four channels, Dimming and color adjustment
  2. Slim light box LED sheet module, depth 50mm
  3. High quality LED chip, High luminous efficiency, high reliability
  4. Size 500x250mm, LED spacing 28mm,LED QTY 162pcs
  5. Patent: ZL201420249938.2
  6. CV input DC24V, Easy to expand installation
  7. Warranty 2 years
  8. CE RoHS FCC PSE
